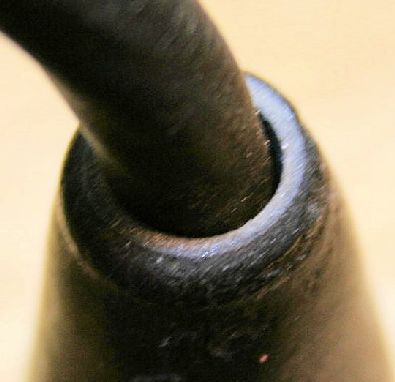

Back of a

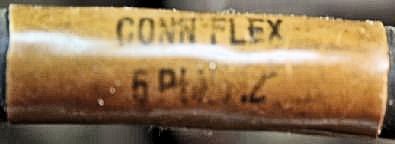

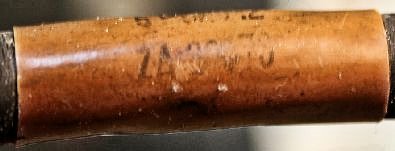

WS 62 snatch plug. Rubber cable. Clearly not a vulcanised-on plug. Dismantling tried, but due to drying out of the rubber not succeeded. Under: markings on the cable. How Nick did it: Thanks to Richard's
suggestions and Henk's pictures I have succeeded in dismantling the
leads. I boiled them for about five minutes, which seems to have
softened the rubber and made the job easier. Thank to everyone. |
 |
 |
 |

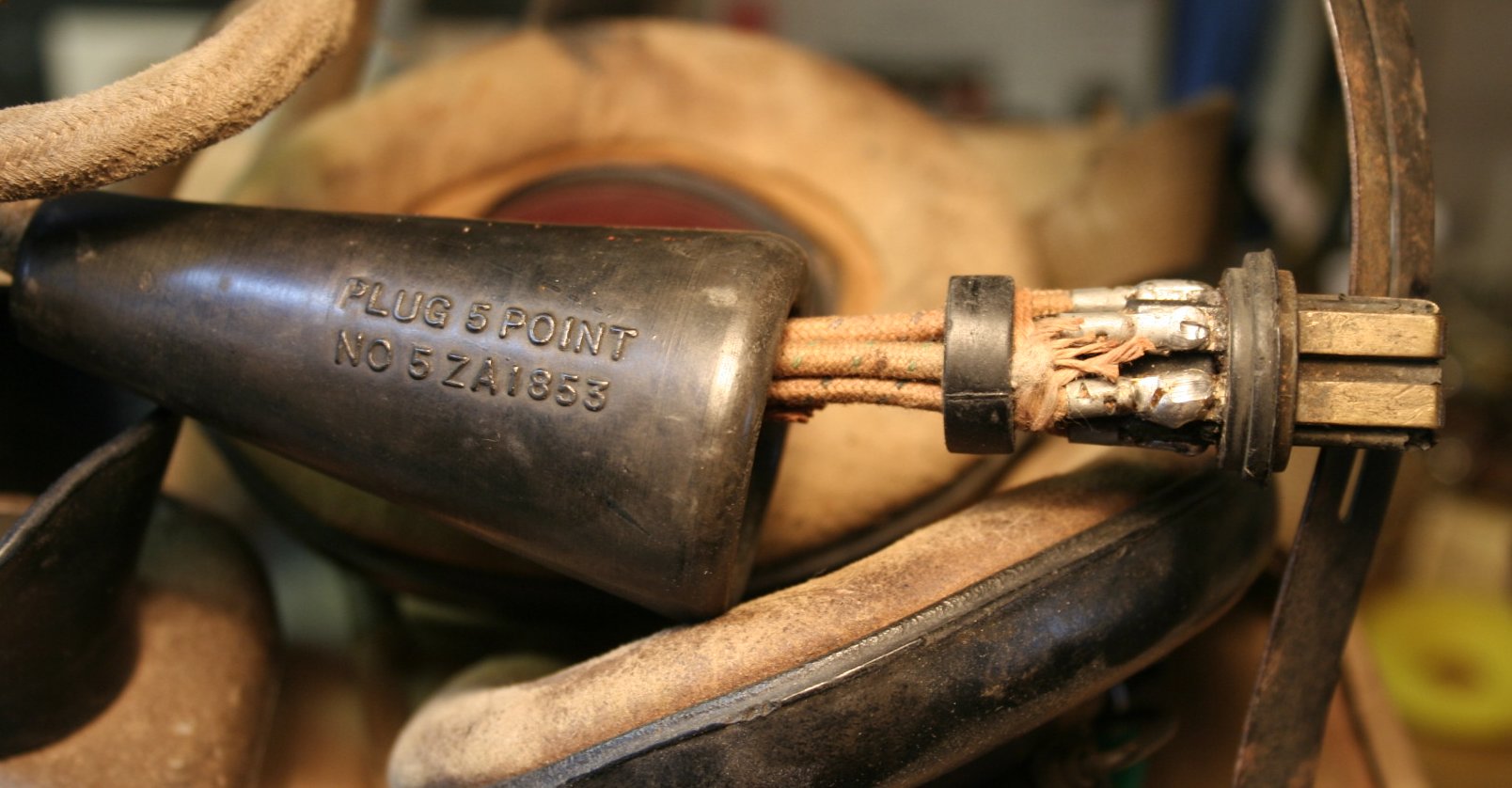

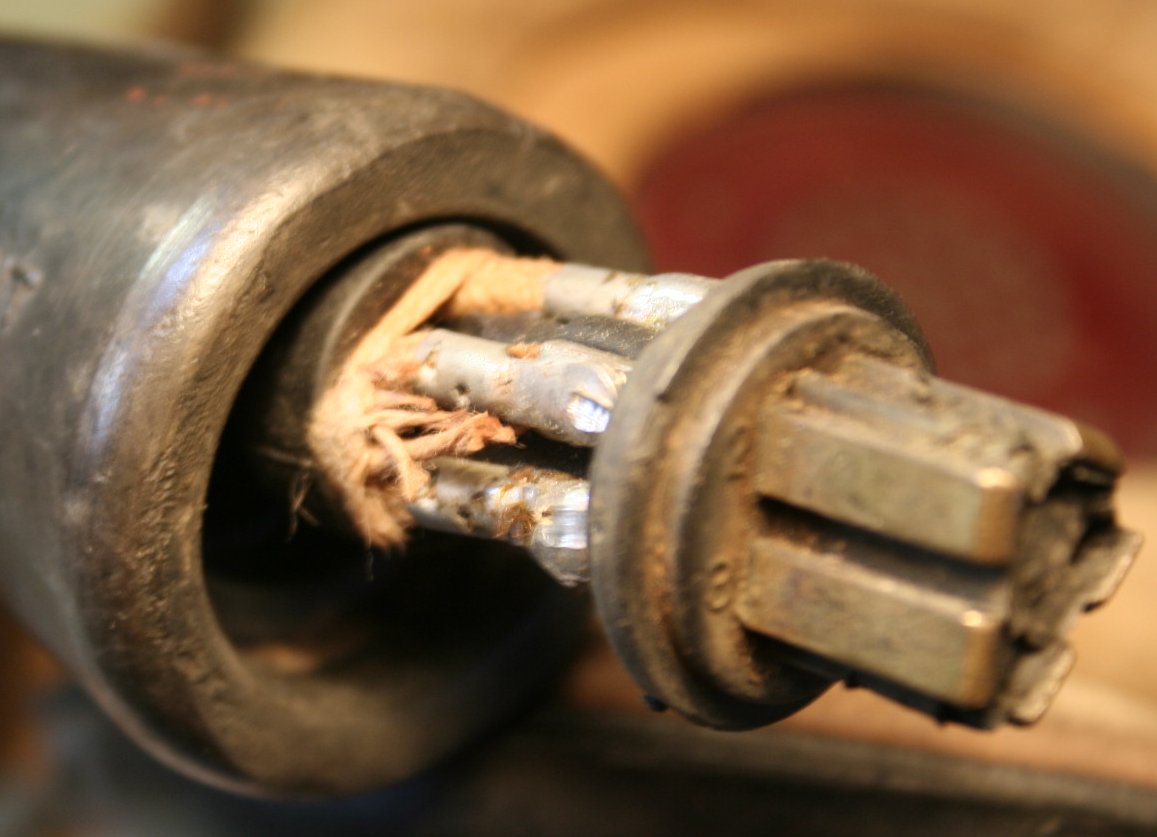

Here an
example of a plug, mounted on a headphone set. Plug 5 Point No. 5 ZA 1853 Click to enlarge. |
 |
Click to enlarge. |
 |

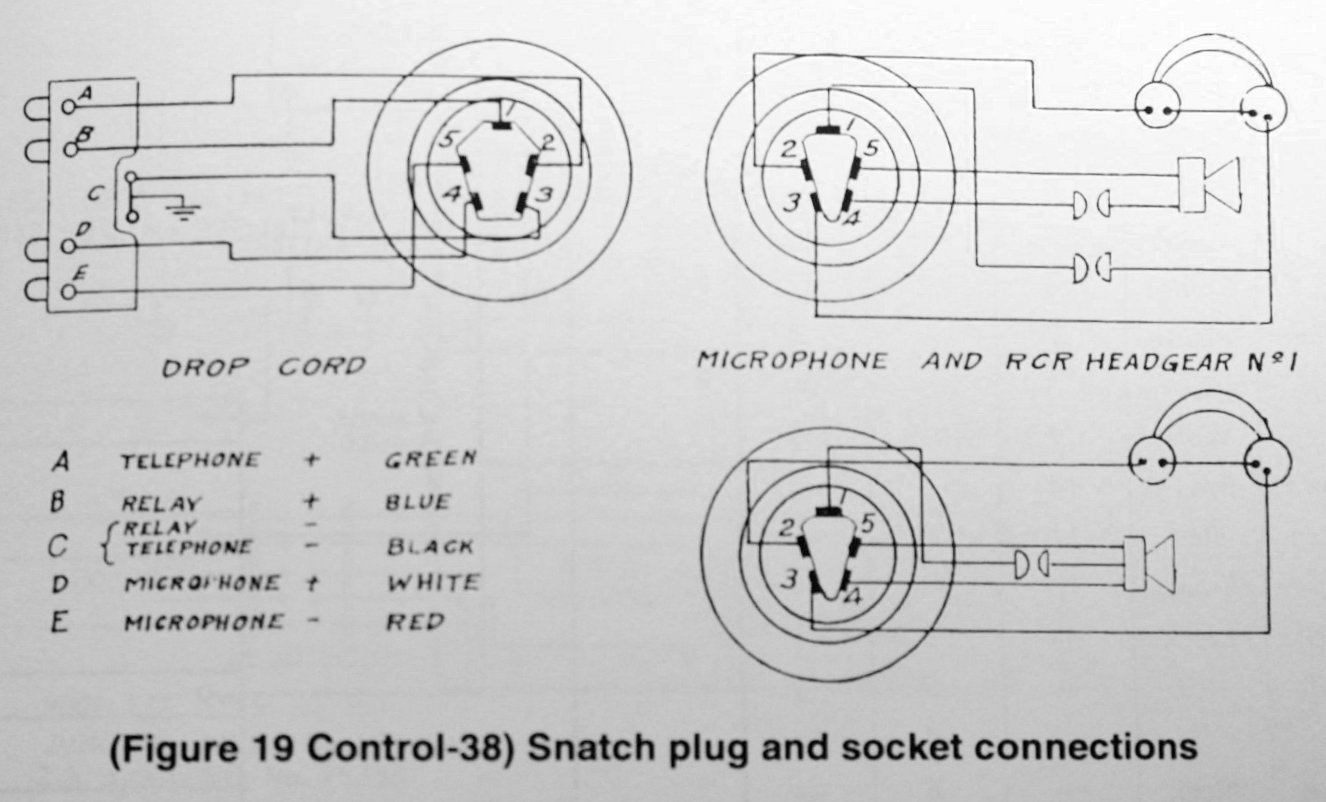

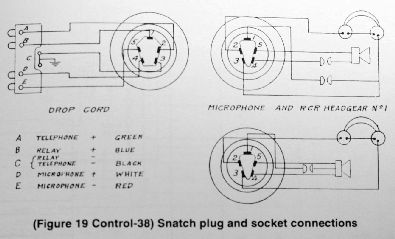

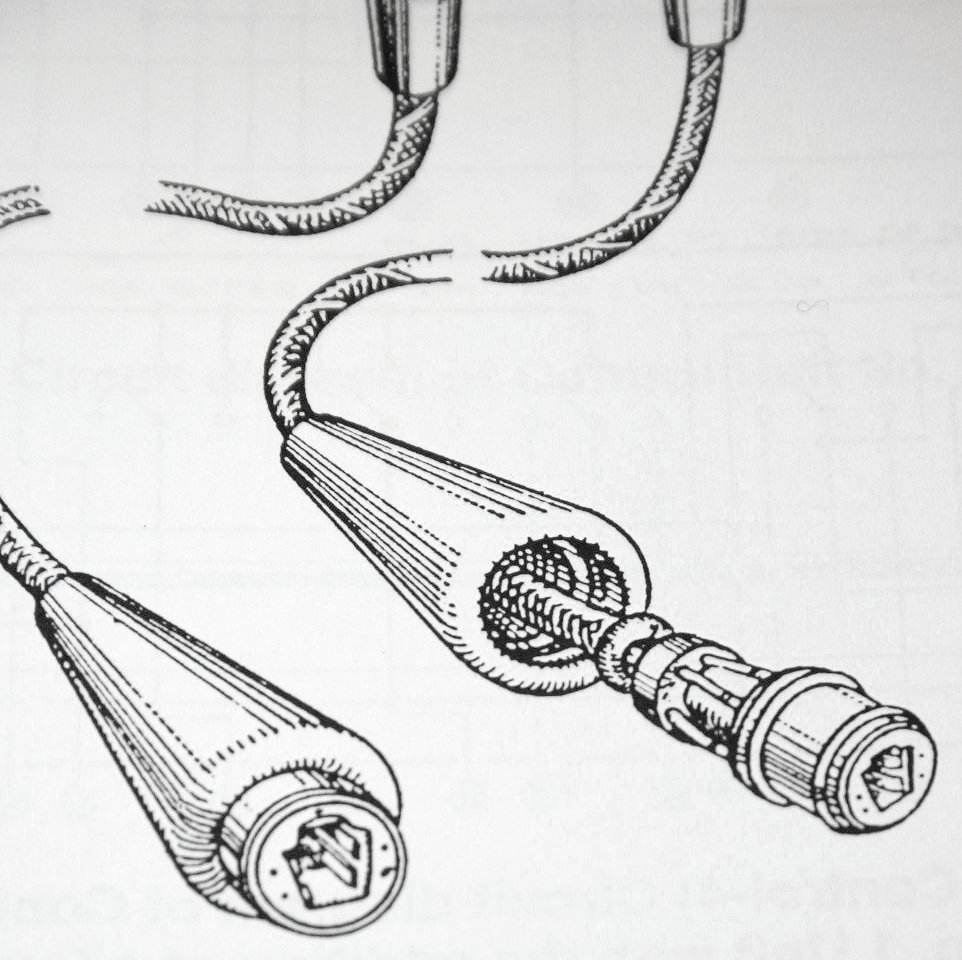

Diagrams Click to enlarge. |
 |

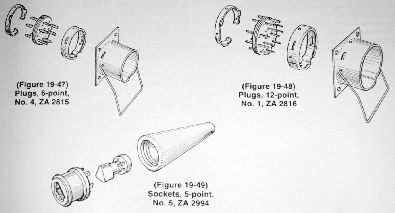

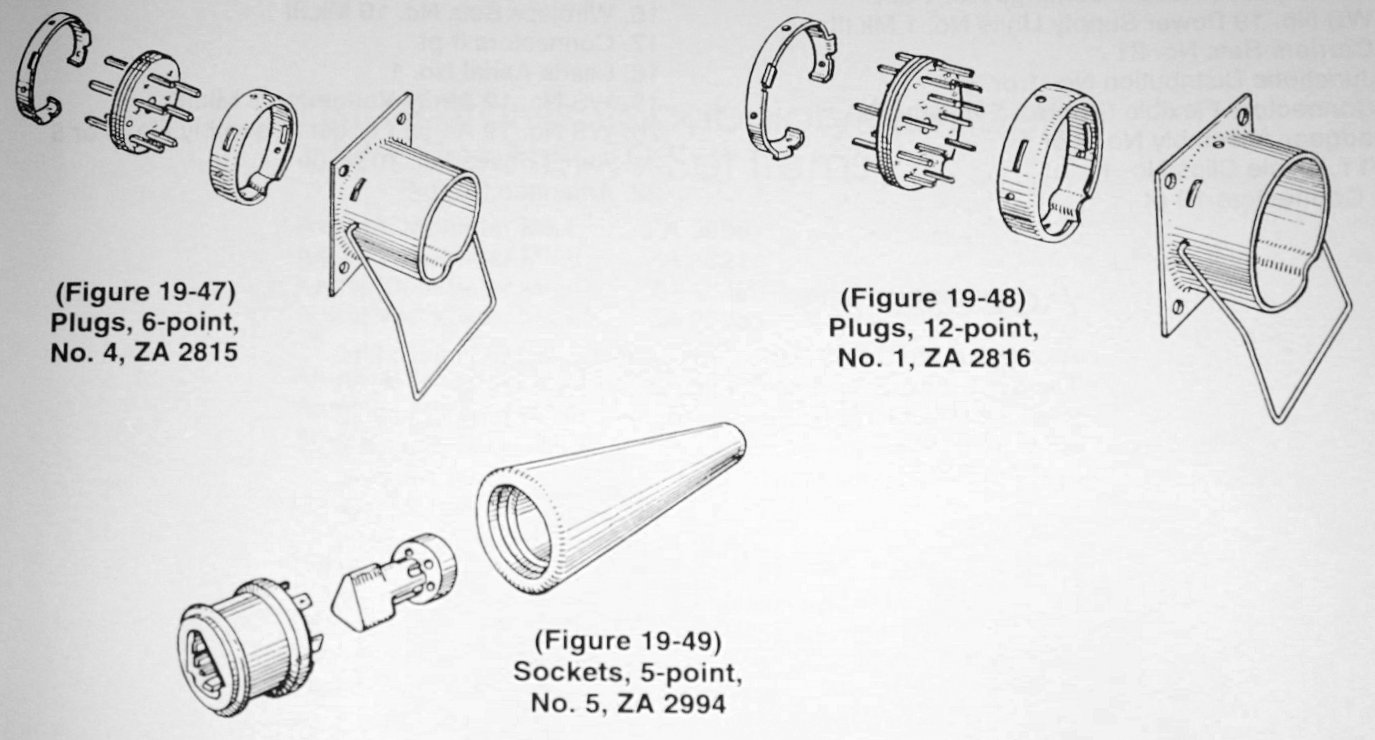

Diagrams Click to enlarge. |
 |
Diagrams Click to enlarge. |
